SC Splice-on Fiber Optic Connectors Hot Melt SC/APC SC/PC Optional
Description
SC Splice-on Fiber Optic Connectors manufactured by ANC International Co., Limited provide a convenient low loss alternative to using pigtails to field terminate fibre cable. The splice-on fast connector is supplied ready terminated with a short length of fiber, which can be directly spliced to installed cable. The splice is then protected within the specially designed connector boot, removing need for additional splice trays or housings. The splice-on connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment. No crimping, polishing, or adhesives are required for termination, minimizing installation errors. The splice-on connectors offer a quick to use, high quality, low insertion loss, low return loss , fully compliant solution. When using Splice On Connectors your job becomes much easier and the quality of your connection improves all in less time.
Features
Compatible with 0.9mm cable, 3mm cable and 3x2mm flat cable
Field-termination connector with no epoxy or polishing required
No special assembling tool, assembled without furthering polishing process;
Splicing point is inside of the connector. No additional splicing work required
Compatible with standard SC connector
PC, APC polishing optional
Used for FTTH Cable or indoor fiber optic cable
Reliable durable and superior optical performance;
Applications
Passive optical networks (PON) Fast Connector
Fiber to the building (FTTB)
FIber To The Office (FTTO)
Fiber to The Home (FTTH)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
Specifications:
| Technical specification | Technical specification |
| Insert loss | <0.3dB |
| Return loss | >50B/PC |
| 4 meters high drop off test (3 times) | <0.2dB |
| High temperature test | <0.2dB |
| Low temperature test | <0.2dB |
| Temperature cycle test | <0.2dB |
| Wet and hot test | <0.2dB |
| Vibration test | <0.2dB |
| Marinated test | <0.2dB |

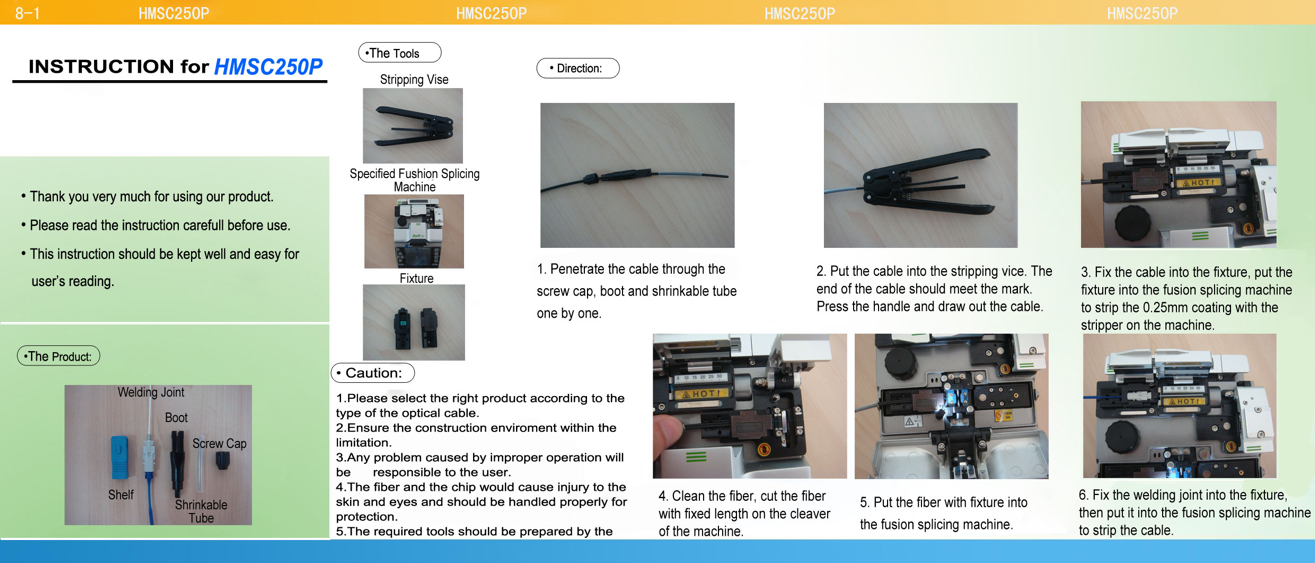

Operating Manual of Splice on Connectors

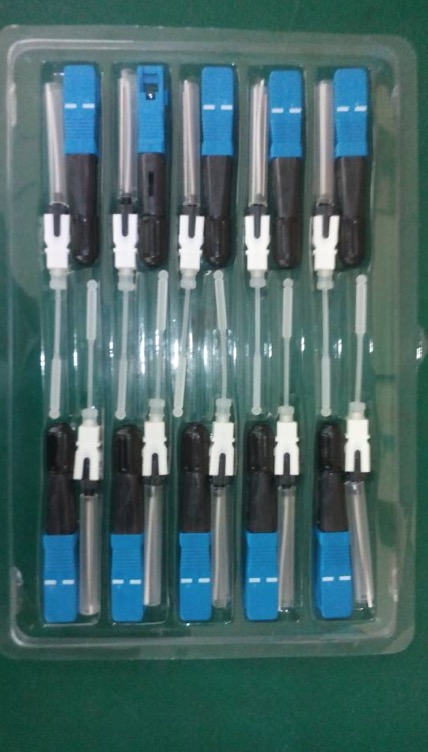

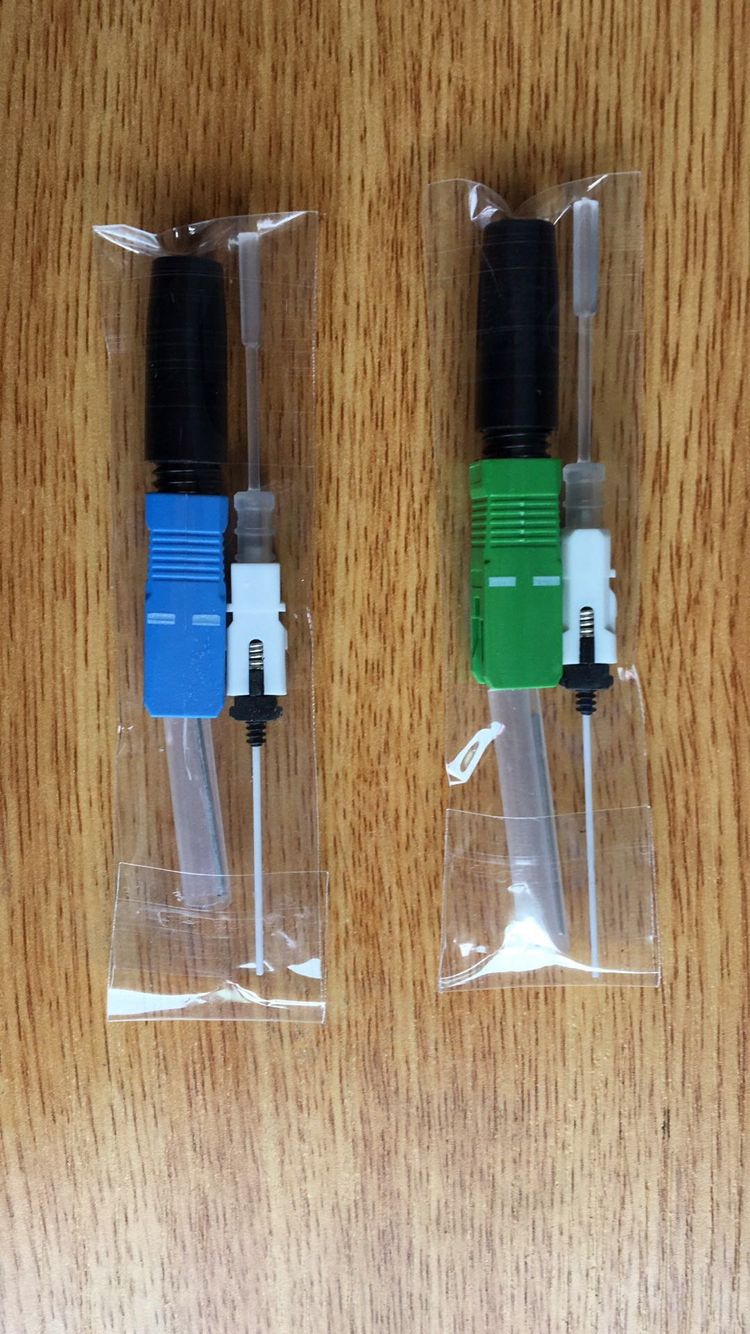

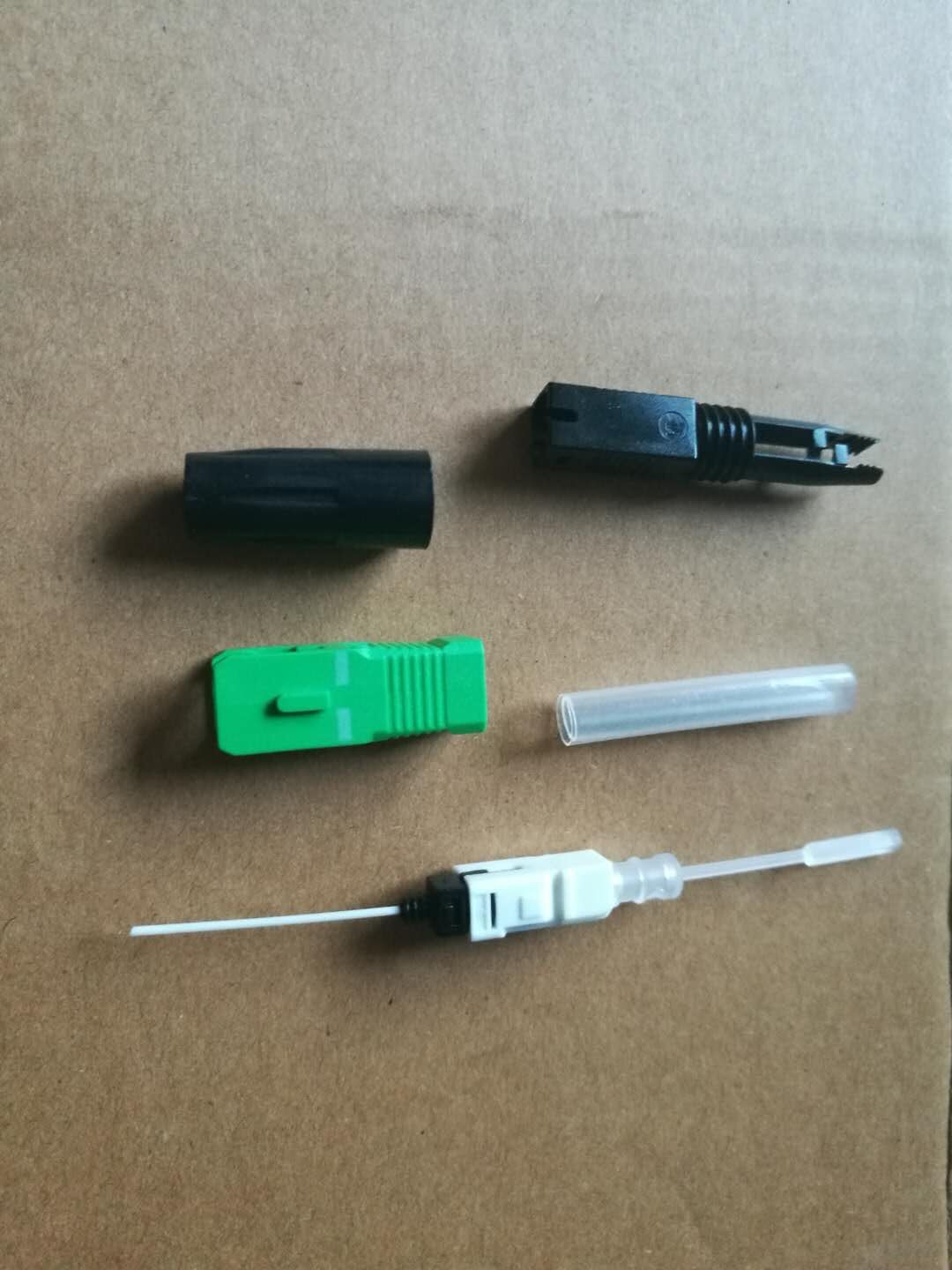

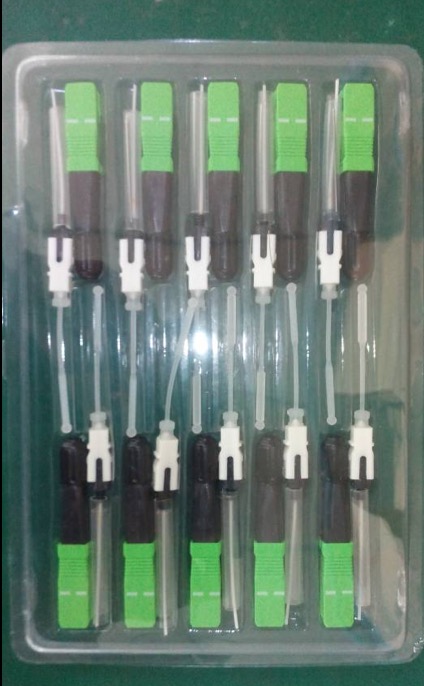

Product Pictures of Splice-on Fast Connectors
