SC FTTH Quick Assembly Connectors

Brand Name : ANC

Model Number : SM SC/PC Fast Connector

Certification : RoHS

Place of Origin : China

MOQ : 10pcs

Price : please ask

Payment Terms : T/T, Western Union

Supply Ability : 5000pcs per day

Delivery Time : 1-5 working days

Packaging Details : 10pcs/box

Length : 55mm or 60mm

Packing : 10pcs/box or customized

Cable : 900um or 3mm or FTTH drop cable

Insertion Loss : typical less than 0.3dB

Fiber : G657 fiber imbed inside

Tensile : >50 N

Contact Now

Pre-polished Fiber Optic Connector SM SC/PC Fast Connectors for 0.9/3.0mm Cable

Description
SM SC/PC fast connectors manufactured by ANC International Co., Limited are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. These fiber optic fast connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. It can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules.
Please kindly note that 0.9mm, 2.0mm and 3.0mm diameter are for the same usage. If 2.0mm or 3.0mm are needed, just remove the tail handle from 0.9mm fast connector.

Features:
Easy assembly, quick assembly SC connector can provide quick and easy termination of fibers in the field.
No special assembling tool, assembled without furthering polishing process;
This connector system removes any requirement for epoxy, adhesive or costly curing ovens, with features of installation quality, high success rate and high reliability.
Compatible with standard SC connector
PC, APC polishing optional
Used for FTTH Cable or indoor fiber optic cable
Reliable durable and superior optical performance;
Insertion Loss: <0.3dB; Return Loss: >50dB

Specifications:

ITEMTechnical Parameters
Applicable forDrop cable. Indoor cable
Optical fiber diameter125μm ( 657A & 657B )
Tight buffer diameter250μm
Fiber modeSingle mode
Operation timeAbout 100s(no fiber cut)
Insert loss≤ 0.3dB(1310nm & 1550nm)
Return loss≤ -60dB(APC); ≤ -50dB(PC);
Fastening strength of naked fiber>5 N
Fastening strength of naked fiber holder>10 N
Tensile strength>50 N
Using temperature-40~+75℃
On-line tensile strength (20 N)△ IL ≤ 0.5dB △ RL ≤ 5dB
Mechanical durability (500 times)△ IL ≤ 0.5dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m,
once per direction, totally 3 times)

△ IL ≤ 0.5dB △ RL ≤ 5dB


SC FTTH Quick Assembly Connectors
SC FTTH Quick Assembly Connectors
SC FTTH Quick Assembly Connectors

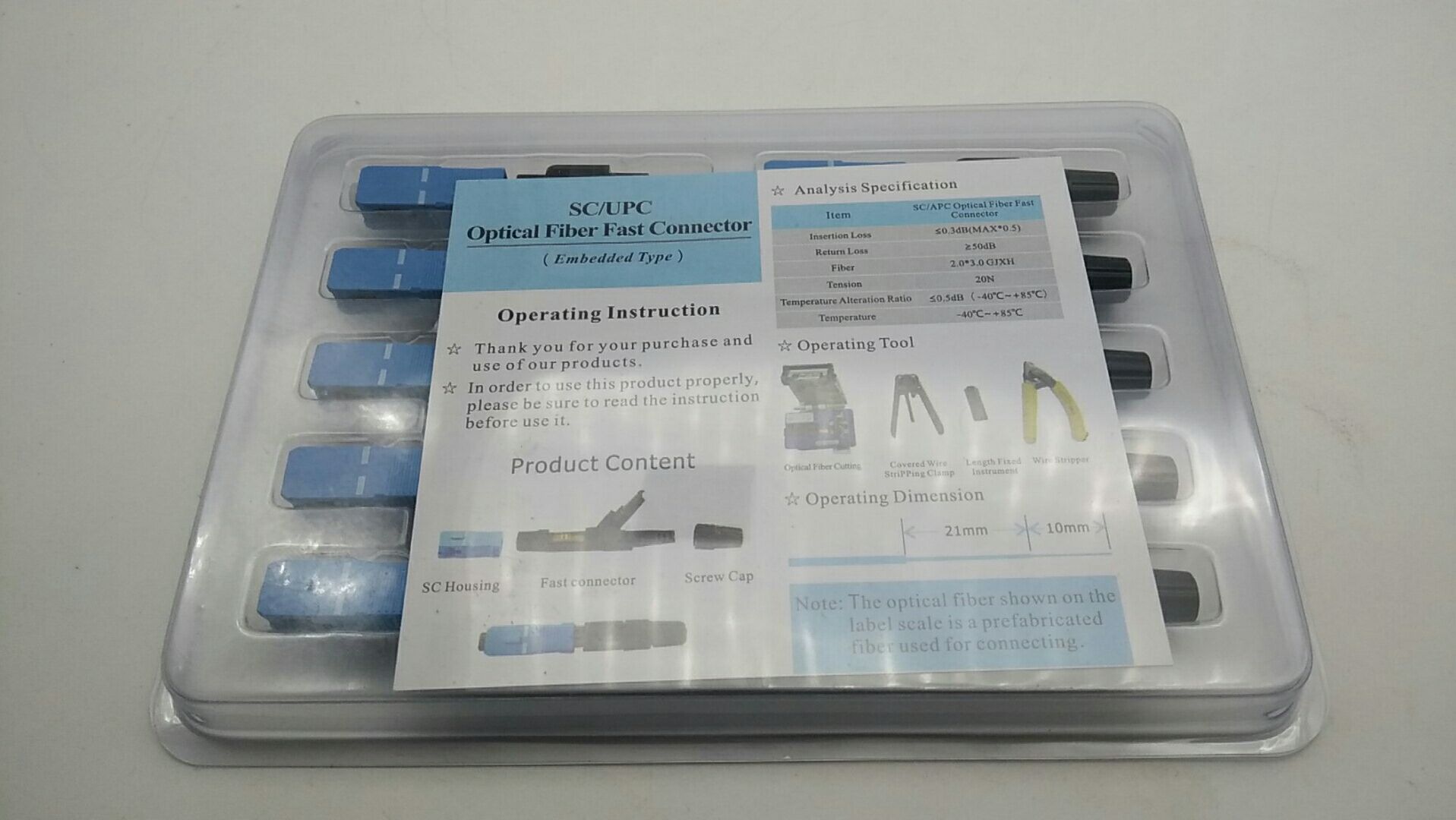

SM SC/PC Fast Connector Operating Manual:

SC FTTH Quick Assembly Connectors
SC FTTH Quick Assembly Connectors
