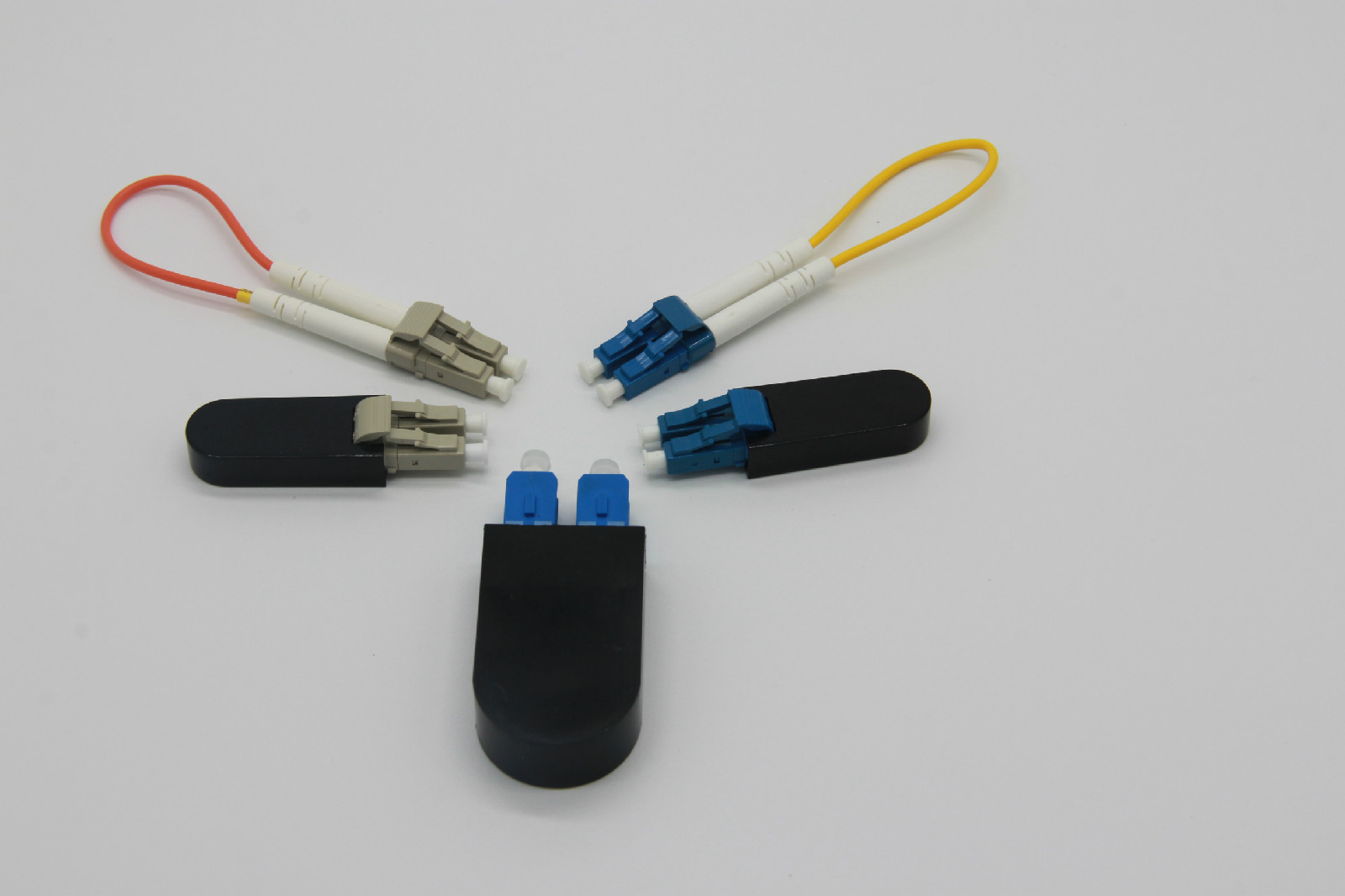

LC Fiber Optic Loopback Test Cable Available in SM, OM1, OM2, OM3, OM4, OM5 Cable
Description:
LC Fiber Optic Loopback Test Cable manufactured by ANC International Co., Limited is available in SM, OM1, OM2, OM3, OM4, OM5 Cable type. Fiber optic loopback cables incorprate two fiber optic connectors and they are plugged into the output and input port of the equipment respectively so that a signal can be sent from a communication device and looped back to the device as a way to troubleshoot a defective node in the network. Loopback modules are useful for testing equipment to determine where a fault might lie. Our loopback cables are compliant with ATM, fast Ethernet, fiber channel, and gigabit Ethernet, and are available in Multimode and Singlemode. A variety of fiber cable jacket types and cable diameters are also optional as per specific request. Fiber Loopback Module is abosolutely an economical solution for a number of fiber optic test applications.
Features:
Test and troubleshoot fiber optic links in networks or devices.
100% tested before delivery
Equipped with a LC Loopback cable inside, it supports the test of transceivers featuring LC interface.
With cover or without cover optional
SM/OM1/OM2/OM3/OM4/OM5 fiber cable optional
LSZH, OFNR, OFNP available
Equipped with a black enclosure to protect the optical cable, and the looped space is reduced for an easier usage and economic package.
Compliance with Telcordia GR-326-Core Compliant
Complying with the RJ-45 style interface. Having a low insertion loss, low back reflection and high precision alignment.
Applications:
Research and Development
Manufacturing Test
Data center testing
Equipment loop test
Transceiver test
Telecommunication network
Troubleshooting
Technical Data
| Characteristics | Unit | Value/Performance |
| Insertion Loss (IL) | dB | ≤0.3 |
| Return Loss (RL) | dB | RL≥50 for SM/PC; RL≥30 for MM/PC; |
| Operating Wavelength | nm | 1310/1550nm for SM; 850nm for MM |
| Mating | | ≥500 times |
| Tensile | N | 100 |
| RoHS Compliant | | Yes |
| Operating Temperature | ℃ | -20~+80 |
| HS Code | / | 8536700000 |
